Description

  • Quick installation with drilling template for floor and door
  • Easy front adjustment in all directions
  • With “V-Rail” reinforced side rails for more stability on full height doors
  • Optional “auto open” feature; a simple nudge gently opens the unit

Specifications

  • Capacity: 2 x 52 qts
  • Load bearing capacity: 100 lbs
  • Minimum height of opening: 24"
  • Minimum width of opening: Face Frame: 15"; Frameless: 15-5/8"
  • Overall dimensions: 14" W x 22-3/8" D x 10" H
  • Type of pull out: Soft & Silent
  • Mounting: Bottom mounted
  • Material: Frame: Steel, powder-coated; Bin: Plastic
  • Application: For cabinets with overlay or inset doors
  • Actual width of sliding unit: 14-5/8"
  • Suitable Use: For use in face frame or frameless cabinets
DISCONTINUED

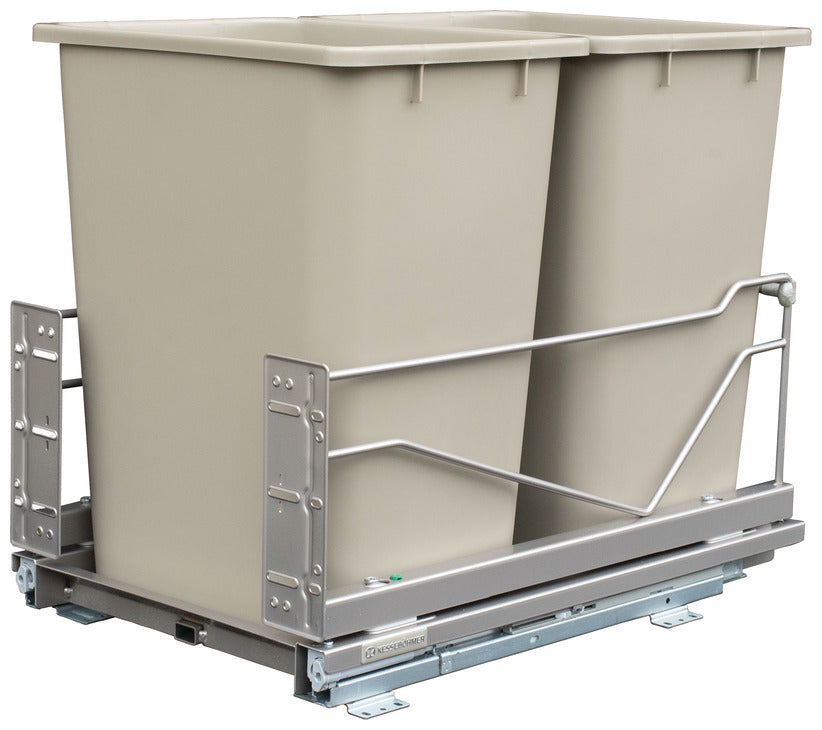

Hafele Bottom Mount Kesseböhmer Double Waste Bin Pull Out, Soft Close

Hafele Bottom Mount Kesseböhmer Double Waste Bin Pull Out, Soft Close

Add to wishlist Add to wishlist

SKU: HA-502.56.242

$309.60
$387.00 $309.60
2 x 52 Quarts
2 x 36 Quarts2 x 52 Quarts
Chrome Frame/White Bin
Champagne Frame/Champagne BinSilver Frame/Grey BinChrome Frame/White Bin
Sold out
Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.
Item typically ships within 1-2 business days . (Minimum order quantity: 1)
Documents

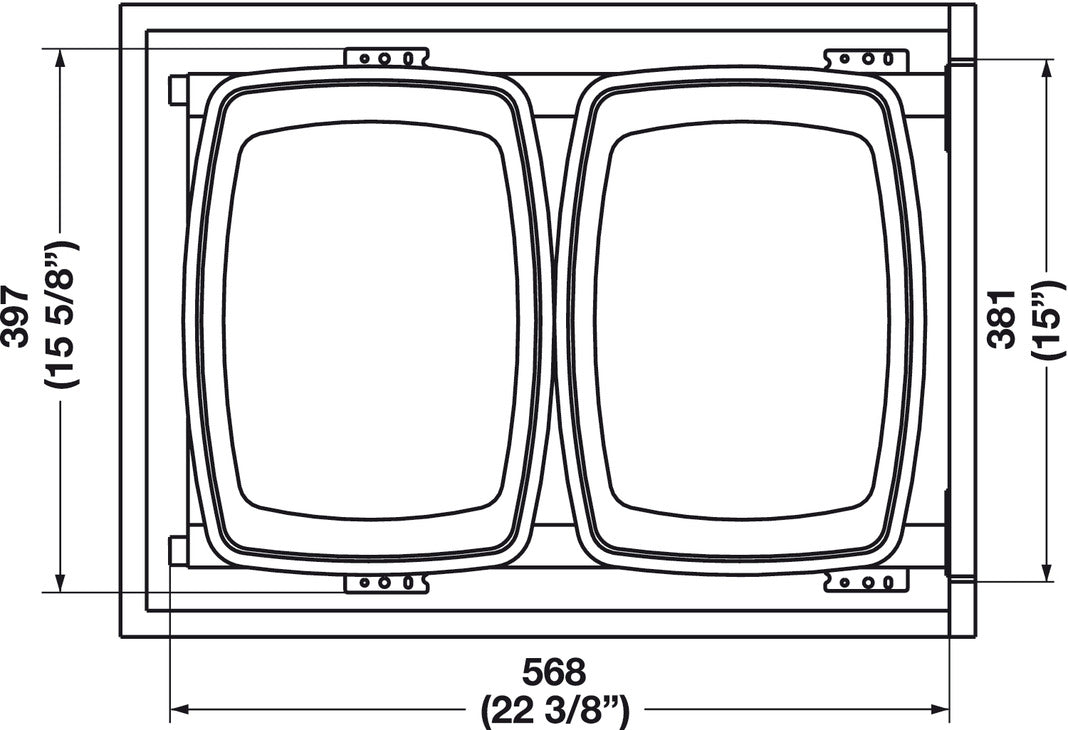

Kesseböhmer Double Bottom Mount Drawing Kesseböhmer Double Bottom Mount Mounting Instructions Kesseböhmer Pull-out Brochure

Description

  • Quick installation with drilling template for floor and door
  • Easy front adjustment in all directions
  • With “V-Rail” reinforced side rails for more stability on full height doors
  • Optional “auto open” feature; a simple nudge gently opens the unit

Specifications

  • Capacity: 2 x 52 qts
  • Load bearing capacity: 100 lbs
  • Minimum height of opening: 24"
  • Minimum width of opening: Face Frame: 15"; Frameless: 15-5/8"
  • Overall dimensions: 14" W x 22-3/8" D x 10" H
  • Type of pull out: Soft & Silent
  • Mounting: Bottom mounted
  • Material: Frame: Steel, powder-coated; Bin: Plastic
  • Application: For cabinets with overlay or inset doors
  • Actual width of sliding unit: 14-5/8"
  • Suitable Use: For use in face frame or frameless cabinets
