Description

Double wall steel frame system provides heavy duty structure and a stylish design
Unit comes pre-assembled with bins included
Melamine Bottom and Back with Edgebanding

Specifications

Features: Soft & Silent

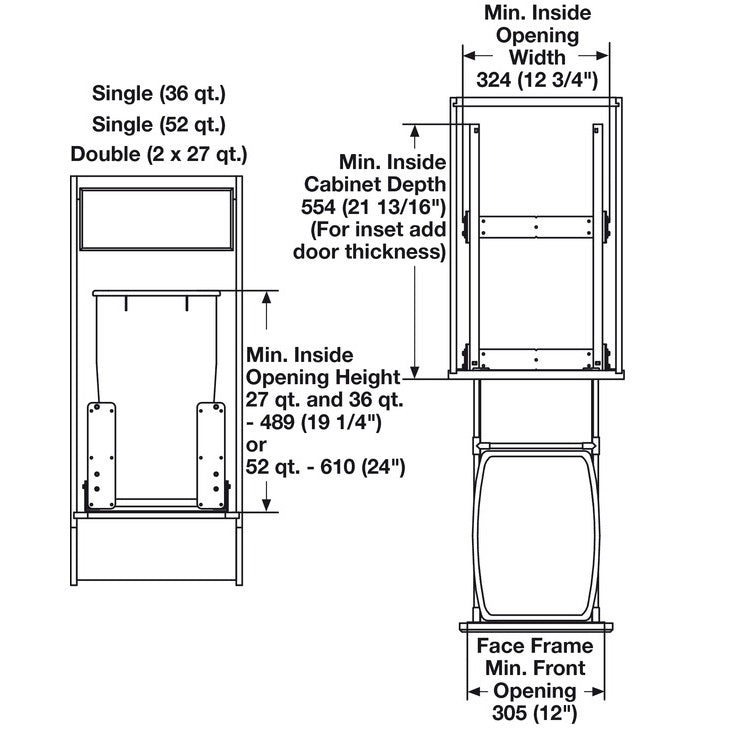

Minimum height of opening: 489 mm (19 1/4") for 36 qt and 610 mm (24") for 52 qt
Minimum Opening Width: 305 mm (12") Face Frame; 324 mm (12 3/4") Frameless; 343 mm (13 1/2") with door brackets reversed for Full Overlay 5 piece doors
Internal cabinet depth: min. (21 13/16") 554 mm
Type of Pull Out: Full extension progressive action runners
Mounting: Quick mounting, bottom bracket rests against back of face frame (3/4" from front edge)
Application: Bottom mount unit designed for Face Frame or Frameless cabinets
Adjustment: 6 way door front adjustment
Load Bearing Capacity: (110 lbs) 50 kg
Material: Frame: Steel; Bottom & Back: Melamine; Bin: Plastic

Fulfill

Add to wishlist

SKU: SKU: HA-503.15.221

$240.00

~~$300.00~~ $240.00

Active item with the manufacturer but no stock in main warehouse. Possible delay due to warehouse transfer time.

Item typically ships within 1-2 business days . (Minimum order quantity: 1)

Documents

MX Waste Bin 18in Drilling Template MX Waste Bin 15in Drilling Template MX Waste Bin Mounting Instructions

Double wall steel frame system provides heavy duty structure and a stylish design
Unit comes pre-assembled with bins included
Melamine Bottom and Back with Edgebanding

Features: Soft & Silent
Minimum height of opening: 489 mm (19 1/4") for 36 qt and 610 mm (24") for 52 qt
Minimum Opening Width: 305 mm (12") Face Frame; 324 mm (12 3/4") Frameless; 343 mm (13 1/2") with door brackets reversed for Full Overlay 5 piece doors
Internal cabinet depth: min. (21 13/16") 554 mm
Type of Pull Out: Full extension progressive action runners
Mounting: Quick mounting, bottom bracket rests against back of face frame (3/4" from front edge)
Application: Bottom mount unit designed for Face Frame or Frameless cabinets
Adjustment: 6 way door front adjustment
Load Bearing Capacity: (110 lbs) 50 kg
Material: Frame: Steel; Bottom & Back: Melamine; Bin: Plastic
